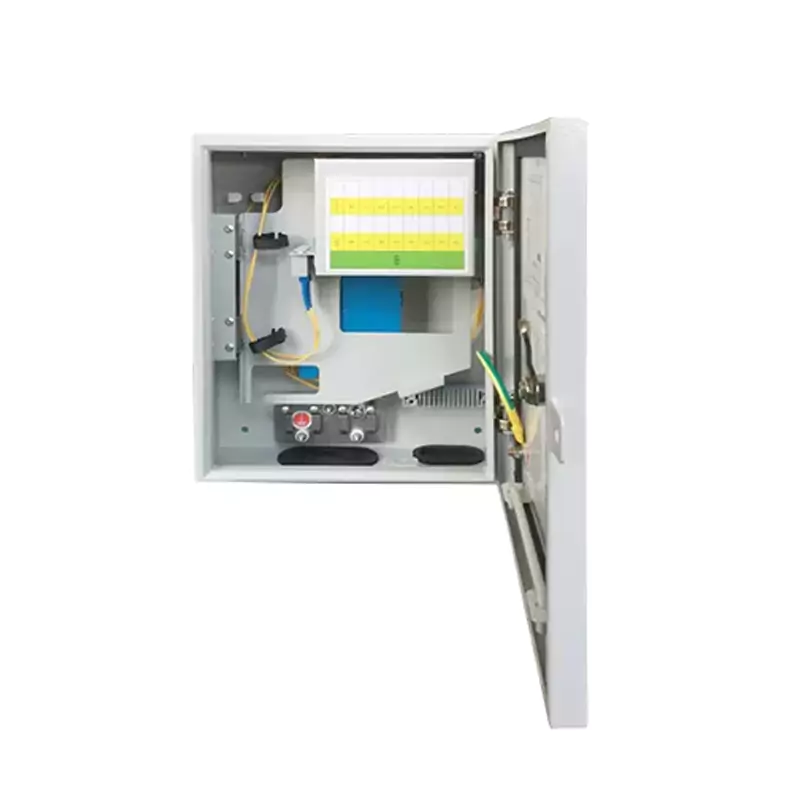

16-core Metal Optical Splitter Box HJ-GFS-KJW-16C adopts a separate fusion-splicing and distribution structure, with fusion splicing and optical distribution functions.
Meets the requirements for distribution and protection of 1~2 optical cables (Φ8~15mm) and terminal distribution of 2 plug-in type optical splitters (along with distribution pigtails or drop cables);
Adopts sheet metal structure, made of galvanized sheet (stainless steel optional) with a thickness of 0.8~1.2mm; Protection Class: IP55;
Optical Splitter: Capable of installing plug-in type optical splitters (1:4, 1:8, 1:16); Maximum core count: 16 cores;
Installation Methods: Pole-mounted, wall-mounted;
Equipped with a reliable fixing device for optical cables and drop cables;
The box can be equipped with a fiber parking position device and an optical cable pulling device;
The fiber distribution box adopts a hinged flap structure, enabling convenient and quick fiber fusion splicing and termination operations;
| Model | Product Dimensions | Weight | Material | Cable Inlet Holes |
| HJ-GFS-KJW-16C | 380*420*100mm | 2.7~4.2kg | Galvanized Sheet 1.0~1.2mm | 2 Inlets & 2 Holes |
| Product Configuration Table | |||||
| Serial No. | Name | Specification | Quantity | Unit | Remarks |
| 1 | Cabinet | 380*420*100mm | 1 | Set | Including internal structural components |
| 2 | Splitter Bracket | Flip-type | 1 | Set | 2 slots reserved |
| 3 | Optical Splitter | Plug-in SC | * | Set | Optional (1:4, 1:8, 1:16) Maximum Quantity: 2 slots |
| 4 | Pigtail | Single-core SC | * | Piece | Optional (0.9mm pigtail, 2.0mm pigtail, drop cable available) |
| 5 | Fiber Splicing Tray Device | 12-core | 1 | Block | Maximum 2 blocks configurable |
| 6 | Heat Shrink Tube | Single-core heat shrink tube | 12 | Piece | |
| 7 | Fiber Protection Sleeve | 1 | Meter | ||
| 8 | Accessories | Installation accessories | 1 | Set | Standard configuration |
