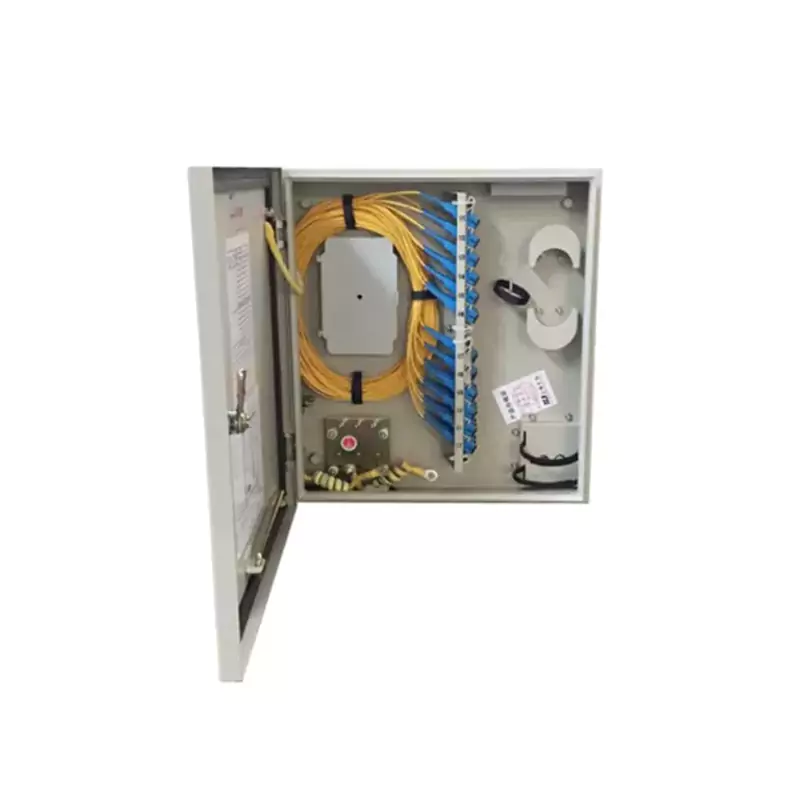

36-Core Metal Fiber Distribution Box

Meets the requirements for fusion splicing, optical splitting, distribution and protection connection of 1~2 optical cables (Φ8~15mm) and 36 distribution pigtails (or drop cables) at the terminal;

Maximum Capacity: 36 cores; Protection Class: IP55;

Adapters/Pigtails: 36-core termination with fiber optic adapters is available; SC and FC adapters are optional;

Optical Splitter: Compatible with box-type optical splitters such as 1:4, 1:8, etc.;

Equipped with a reliable fixing device for optical cables and drop cables;

A fiber parking position device can be installed inside the cabinet;

The fiber distribution box adopts a left-right optical distribution structure, enabling convenient and quick fiber fusion splicing and termination operations;

The box body adopts a sealed structure, supplemented by an optional mechanical lock for fixation, and the box is easy to open and close;
