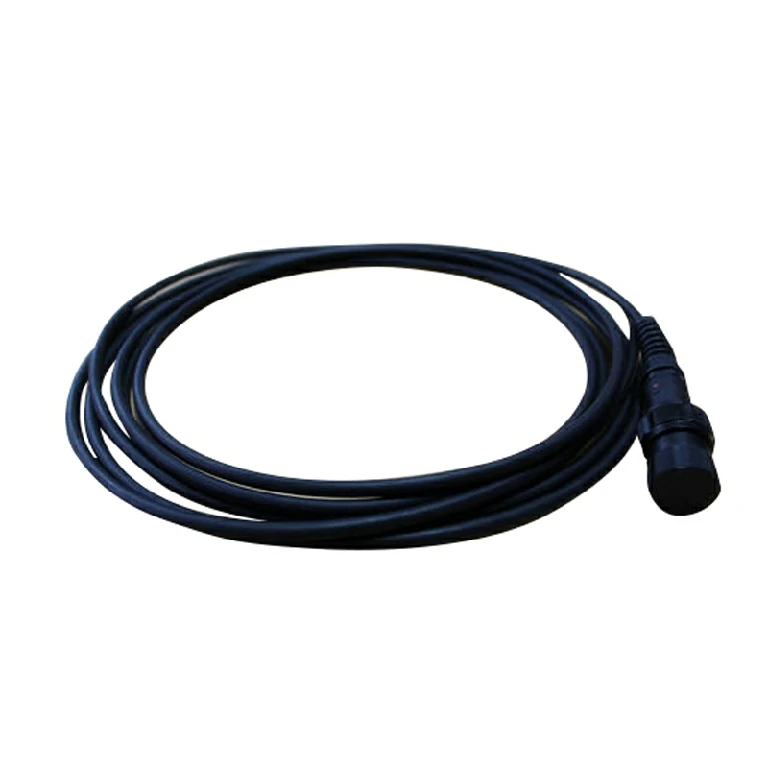

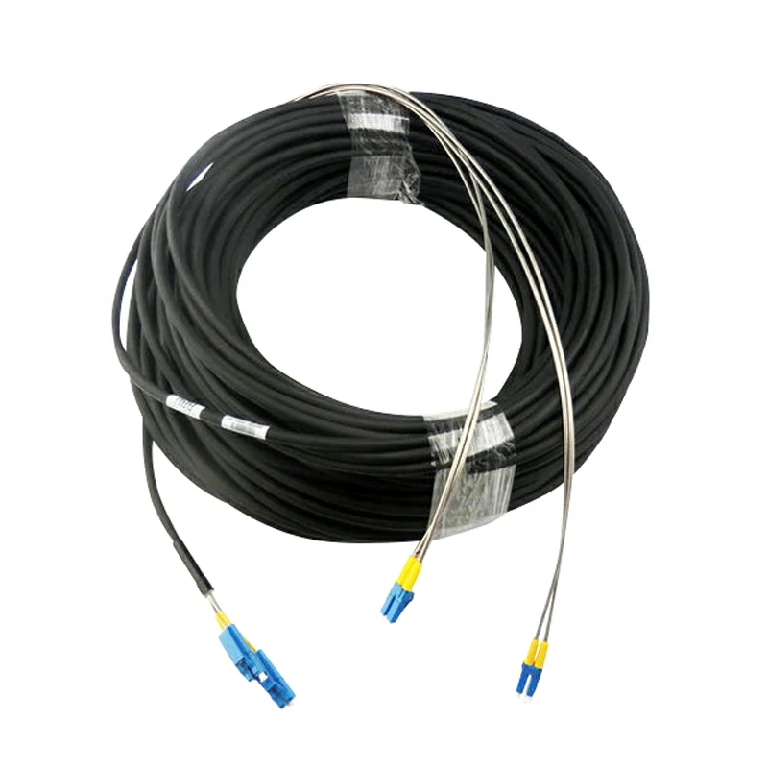

Remote optical cable is mainly used for local remote extension of the same site. When remote extension is needed; due to the long-distance laying of optical cables across buildings; the optical cables laid in corridors and pipelines can be connected with outdoor optical cables, and then remote optical cables with connector heads are connected at both ends to enter RRU and BBU respectively, or remote optical cables can be directly laid to achieve remote extension. Remote optical cables have the performance of withstanding indoor and outdoor environments.
Flexible, small bending radius and lightweight;
Suitable for vertical and horizontal cabling; with long-term reliability;
Wear-resistant and flame-retardant, applicable for indoor and outdoor use;
Sufficient strength to adapt to complex construction environments;
Lightning protection;
Excellent resistance to high and low temperatures;
| Fiber Category | B1.1 and B1.3 | B4 | B6 | ||||||
| Operating Wavelength (nm) | 1310 | 1550 | 1625 | 1550 | 1625 | 1310 | 1550 | 1625 | |
| Attenuation Coefficient (Maximum Value) (dB/km) | Class Ⅰ | 0.36 | 0.23 | 0.26 | 0.22 | 0.27 | 0.38 | 0.24 | 0.28 |
| Class Ⅱ | 0.40 | 0.26 | 0.30 | 0.25 | 0.30 | 0.50 | 0.30 | 0.40 | |
| Note: The product is only tested at the wavelengths required by the user. | |||||||||
| Fiber Type | A1a.1 | A1a.2 | A1b | |||
| Operating Wavelength (nm) | 850 | 1300 | 850 | 1300 | 850 | 1300 |
| Attenuation Coefficient Class (Maximum Value) (dB/km) | 2.4 3.0 3.5 | 0.7 1.0 1.5 | 2.5 | 0.8 | 2.8 3.5 | 0.7 1.0 1.5 |
| Modal Bandwidth Class (Minimum Value) (MHz-km) | 200 500 800 | 200 500 800 1000 1200 | 1500 2000 (Effective Modal Bandwidth) | 500 | 100 200 500 800 | 200 500 800 1000 |
| Note: Unspecified bandwidth values are overfilled launch bandwidth values. | ||||||
Note: The above coefficients do not include the insertion loss of connectors. If connectors are included, a loss of 0.35dB shall be added.
