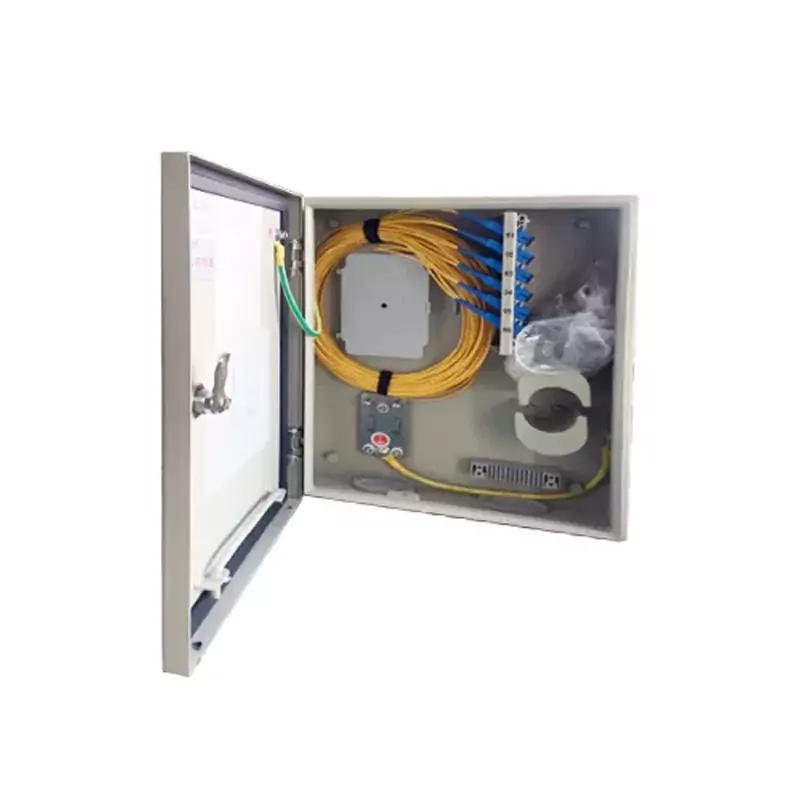

12-core Metal Fiber Distribution Box HJ-GF-KJW-12C adopts a separate fusion-splicing and distribution structure, with fusion splicing and fiber distribution functions.
Meets the fusion splicing, optical splitting, distribution and protection connection requirements for 1~2 optical cables (Φ8~15mm) and 12 distribution pigtails (or drop cables) at the terminal;
Maximum Capacity: 12 cores; Protection Class: IP55;
Adapters/Pigtails: 12-core termination with fiber optic adapters is available; SC and FC adapters are optional;
Equipped with a reliable fixing device for optical cables and drop cables;
A fiber parking position device can be installed inside the cabinet;
The fiber distribution box adopts a left-right optical distribution structure, enabling convenient and quick fiber fusion splicing and termination operations;
The box body adopts a sealed structure, supplemented by an optional mechanical lock for fixation, making the box easy to open and close;
Built-in fiber fusion protection device and fiber adapter fixing device;
| Product Configuration List | |||||
| Serial No. | Name | Specification | Quantity | Unit | Remarks |
| 1 | Cabinet Body | 395*305*78mm | 1 | Set | Including internal structural components |
| 2 | Bracket | Left-right separated type | 1 | Set | |
| 3 | Adapter | SC or FC | 12 | Piece | |
| 4 | Pigtail | Single-core SC | 12 | Piece | Optional (0.9mm pigtail, 2.0mm pigtail, drop cable optional) |
| 5 | Fiber Splicing Tray Device | 12-core | 1 | Block | Maximum 1 block can be configured |
| 6 | Heat Shrinkable Tube | Single-core heat shrinkable tube | 12 | Piece | |
| 7 | Fiber Protection Sleeve | 0.5 | Meter | ||
| 8 | Accessories | Installation accessories | 1 | Set | Standard configuration |
